Argus
Pusher surveillance platform with a steerable nose camera.
$24.00
Wingspan1228 mm
Length840 mm
AUW1400 g target
Optimal speed60 to 100 km/h
Min print bed220 × 220 mm, fuselage in sections
MaterialLW-PLA
Overview
The Argus is a conventional high-wing platform built around a nose camera turret and a tail-mounted pusher. The motor sits behind the V-tail, well clear of the camera arc, and each wing splits into three panels so the whole aircraft packs down flat.
Features

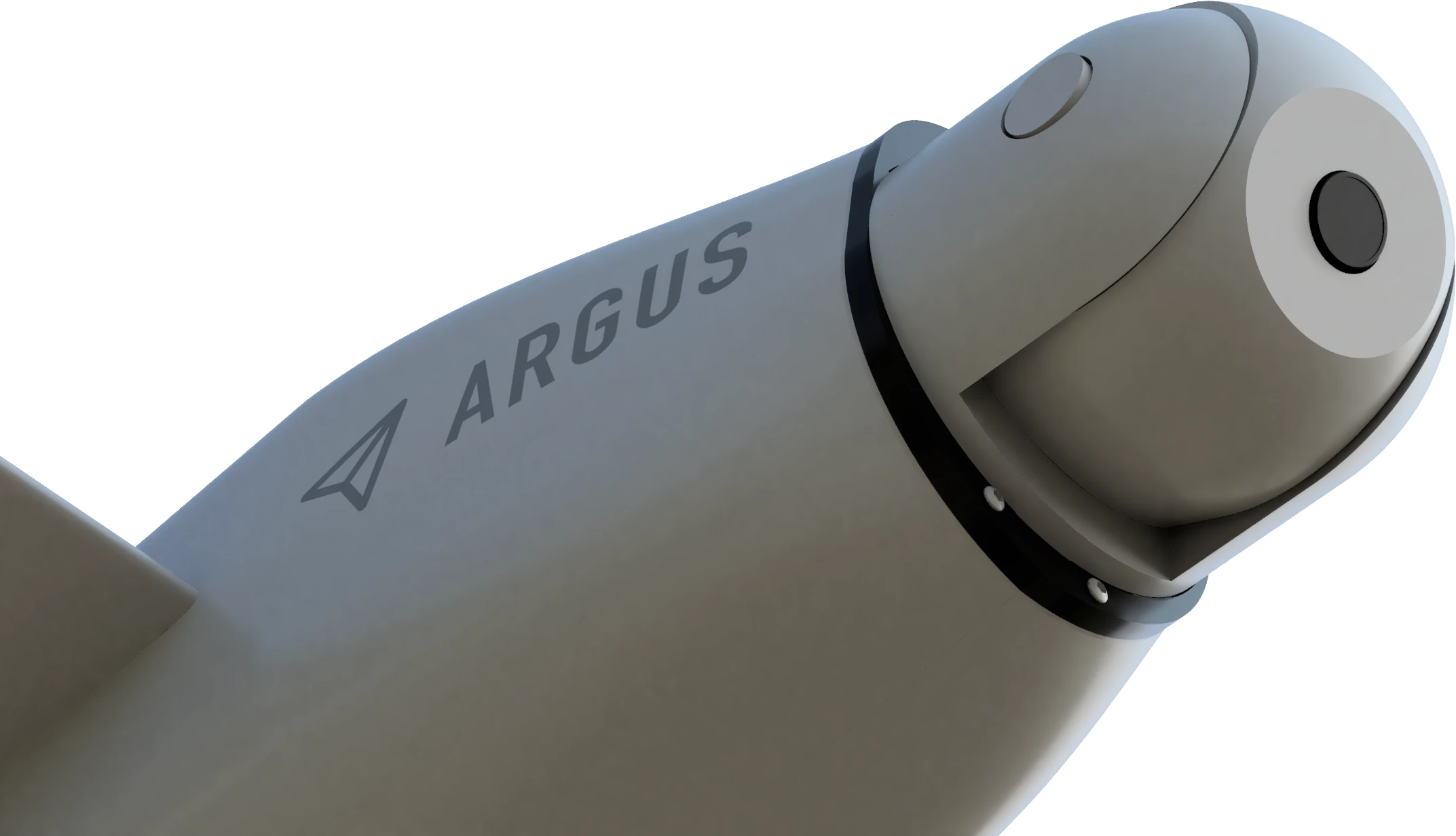

- Steerable nose turret for a Raspberry Pi camera
- Tail pusher, no propeller in the camera view
- Three wing panels per side for transport
- V-tail with enclosed servo bays
- Internal channels for antennas and telemetry
STEP files. Every package ships with editable STEP geometry alongside print-ready STL, so you can adapt panels or hardware bays to your build.
Gallery
Required accessories
| Item | Quantity |
|---|---|
| Carbon wing spar set | 1 |
| Control horns | 4 |
| M3 screw set | 1 pack |
| M3 heat-set threaded inserts | 12 |
| Nylon pinned hinges | 6 |
Recommended electronics
| Component | Suggestion |
|---|---|
| Motor | 1950KV on 6S |
| ESC | 50A single, 5V/3A BEC |
| Propeller | 5 × 4.3 pusher |
| Battery | 6S 1500 mAh |
| Flight controller | CoreWing F405 Wing V2, ArduPlane |
| GPS | u-blox M10 with compass, e.g. HGLRC M100 PRO |
| Servos | MG90S metal gear × 4 |
| Camera | Raspberry Pi Camera 8MP, M12 lens |
| Turret drive | N10 12GA gear motor with H-bridge |
Full slicer settings live on the Print Settings page. Files are licensed for personal, non-commercial use only. See the License Agreement for details.
- • Printable STL files
- • Editable STEP geometry
- • Recommended slicer profiles
- • Bill of materials & wiring diagram
